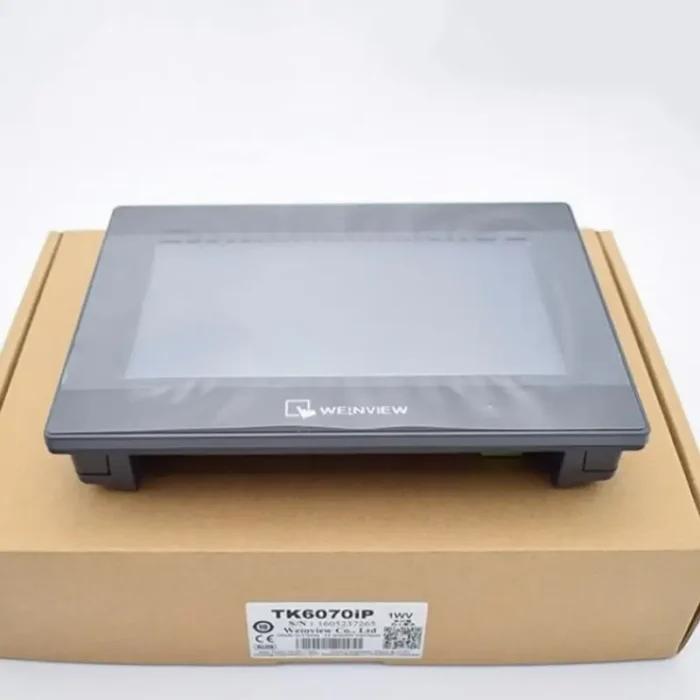

Weinview TK6070IP 7″ Touch Panel Screen Display HMI

The Weinview TK6070IP is another model in the Weinview HMI series, designed for industrial automation. Here are some of its key features:

1. Display:
   • 7-inch TFT LCD
   • Resolution: 800 x 480 pixels
   • 65536 colors for a vibrant display
2. Touchscreen: Resistive touchscreen, providing reliable and precise touch input.
3. Processor: 32-bit RISC CPU for efficient performance in various applications.
4. Memory:
   • Flash memory: 128MB
   • RAM: 64MB DDR2
5. Communication Ports:
   • One RS232/RS485/RS422 port for serial communication.
   • One Ethernet port (10/100 Mbps) for network connectivity.
   • One USB host port for connecting peripheral devices.
   • One USB client port for programming and configuration.
6. Software Compatibility: Supports Weinview’s EasyBuilder Pro software for designing and developing HMI projects.
7. Power Supply: Operates on a 24V DC power supply.
8. Environment:
   • Operating temperature range: 0°C to 50°C
   • Storage temperature range: -20°C to 60°C
   • Humidity: 10% to 90% RH (non-condensing)
9. Mounting: Compact design suitable for panel mounting, fitting well into control cabinets and panels.
10. Multi-language Support: Supports multiple languages, making it versatile for use in various global applications.
